Yuwell Air portable Nebulizer M 102

How to use M102

How to fix slow nebulizer mist output

how to clean nebulizer after each session

PRODUCT DESCRIPTION

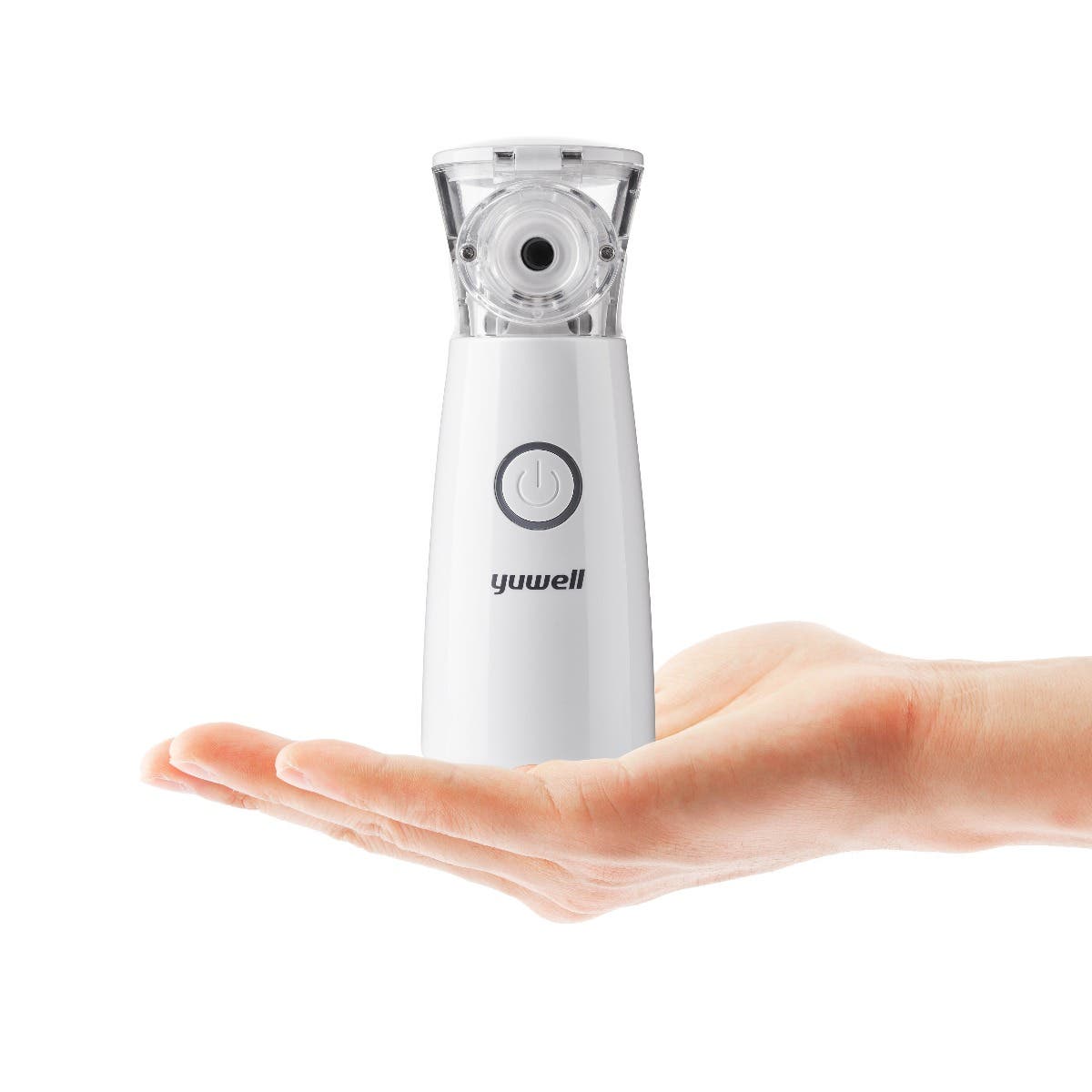

• The Yuwell M102T is a handheld mesh nebulizer that turns liquid medication into a fine mist you breathe in.
• It is small enough to hold in one hand and runs on two AA batteries, so treatment does not have to wait until you are near a power socket. You can use it at home, at work, in the car, or while travelling.

• The device works quietly, so it will not disturb a sleeping child or the people around you. Because it makes so little noise and has no bulky compressor, children are often more willing to sit through a session with it.

• The mesh produces very fine particles that reach deep into the airways, and more than 98.8% of the medication in the cup is put to use — very little is left behind when the session ends. It handles a range of common inhalation solutions.

• The cup and mesh detach for cleaning, which keeps the routine simple between sessions. The device also shuts down on its own when the medication runs out, so you do not have to watch it the whole time.

PRODUCT DETAILS

• Model: M102T

• Brand: Yuwell (Jiangsu Yuyue Medical Equipment & Supply Co., Ltd)

• Product type: Portable handheld mesh nebulizer

Performance

• Maximum nebulization rate: approx. 0.3 mL/min

• MMAD (mass median aerodynamic diameter): approx. 3.9 μm

• Residual volume: approx. 0.1 mL

• Drug utilization: more than 98.8%

• Noise: approx. 45 dB(A)

Power

• Power supply: 3 V (−0.3 V, +0.3 V), two "AA" 1.5 V alkaline batteries
• Adapter input: 100–240 V~, 50/60 Hz, 0.2 A
• Adapter output: 5 V, 1 A

Features

• Over 98.8% drug utilization
• Small particles
• Fast inhalation
• Easy to clean
• Smart shutdown
• Soundless operation
• Multi-solution compatibility
• Durable nebulizing mesh
• Detachable medication cup

Physical

• Dimensions: 62 mm (L) × 48 mm (W) × 125 mm (H)
• Net weight: approx. 110 g (excluding batteries)
• Certification: CE

Packing specification

• Quantity: 10 pcs per carton

• Gross weight / net weight: 4.7 kg / 1.1 kg

• Carton size: 40.5 × 33.5 × 17 cm

CAUTION & WARNING

• Read the user manual supplied with the device before first use and keep it for future reference.

• Use only the medication, dose, and treatment schedule prescribed by your doctor. Do not change them on your own.

• Check that the mesh, medication cup, and mask or mouthpiece are clean, dry, and undamaged before every session.

• Wash your hands before preparing the medication.
  Medication

• Use only inhalation solutions intended for nebulizer use and approved by your doctor or pharmacist.

• Do not put essential oils, undiluted liquids, oily preparations, thick suspensions, tap water, or homemade mixtures into the cup. These can block the mesh and are not safe to inhale.

• Do not exceed the maximum fill level of the medication cup.

• Prepare medication fresh for each session and do not leave leftover medication in the cup.
  Who should take care

• Children should use the device only under adult supervision.
  For infants, young children, elderly users, and anyone unable to hold the device or breathe on their own, follow your doctor's instructions and stay with them throughout the session.

• If you feel breathless, dizzy, or unwell during a session, or if your symptoms do not improve or get worse, stop and contact a healthcare professional. In an emergency, seek urgent medical help.

Safe use

• This device delivers medication that a healthcare professional has prescribed. It does not treat or cure any condition by itself and is not a substitute for medical care.

• Do not use the device as a substitute for a rescue inhaler in a sudden severe attack unless your doctor has told you to.

• Use the device upright as described in the manual, and do not shake or tilt it beyond the angle stated there.

• Do not use near flammable anaesthetic gases or in an oxygen-rich environment.

• Do not touch the mesh with your fingers, a needle, a brush, or any sharp object. The mesh is delicate and damage to it will affect the mist output.

• Do not disassemble, modify, or attempt to repair the device.

• Do not share the mask, mouthpiece, or medication cup between people. Each user should have their own accessories.

• Keep the device and its small parts out of reach of children. It is not a toy.

Batteries and adapter

• Use two 1.5 V AA alkaline batteries and insert them the correct way round.
  Do not mix old and new batteries or different battery types.

• Remove the batteries if the device will not be used for a long time.

• Use only an adapter matching the stated rating (100–240 V input, 5 V / 1 A output). Do not use a damaged adapter or cable.

• Keep batteries away from children. If a battery is swallowed, seek medical help immediately.

Cleaning, storage, and disposal

• Clean the medication cup, mask, and mouthpiece after every session, following the method in the user manual, and let all parts dry completely before storing them.

• Do not immerse the main unit in water or any liquid. Wipe it with a soft, lightly dampened cloth only.

• Do not boil, autoclave, or clean any part with abrasives or strong solvents unless the manual states it is permitted.

• Replace the nebulizing mesh when mist output drops or as advised in the manual.

• Store in a clean, dry place, away from direct sunlight and out of reach of children.

• Dispose of the device and used batteries according to your local regulations.
• Do not put them in household waste.
