Yuwell Air Portable Nebulizer M105

Yuwell Air Portable Nebulizer M105

PRODUCT DESCRIPTION

• The Yuwell M105 Mesh Nebulizer is an advanced, portable medical device that utilizes mesh technology to create a fine aerosol mist for inhalation therapy.


• Its compact and lightweight design, coupled with a dual power supply option using batteries or Type-C, makes it convenient for use at home or while traveling.


• It is designed for users of all ages, from children to the elderly, to meet diverse treatment needs.


• The device is CE certified, indicating compliance with European standards for health and safety.

KEY FEATURES

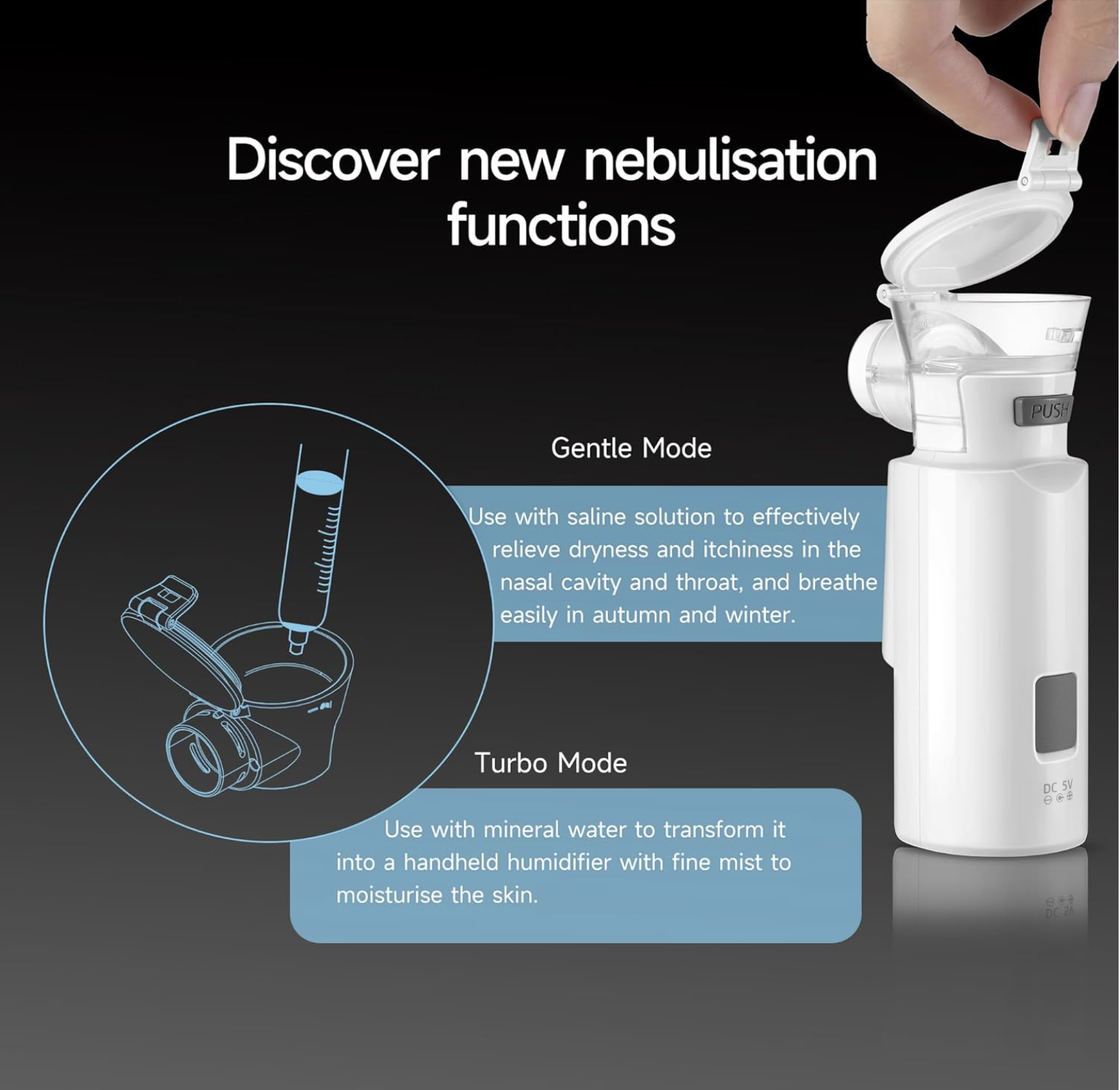

• Dual-Speed Nebulization Rate: Provides flexibility in treatment, allowing users to select between two different speeds to match their specific respiratory condition and comfort level.


• Efficient Medication Delivery: Produces fine particles with a Mass Median Aerodynamic Diameter (MMAD) of approximately 3.9 μm, suitable for targeting the upper and lower respiratory tracts. The very low residual volume of approximately 0.1 mL helps minimize medication waste.


• Versatile Power Supply: Can be powered by two "AA" alkaline batteries for portability or via a Type-C USB cable connected to a power source.


• User-Friendly Operation: Features a one-touch automatic cleaning function for easier maintenance. The automatic shut-off feature activates after treatment is complete, helping conserve power and preventing the device from running dry.


• Quiet and Durable: Operates at a low noise level of approximately 45 dB(A), making treatments more comfortable, especially for children. The IP22 rating provides protection against dust and water exposure under specified conditions.

INHALATION COMPONENTS

• Adult Mask: A full-sized mask for adult users.


• Child Mask: A smaller mask designed for the facial contours of children.


• Mouthpiece: For direct inhalation through the mouth.


• Power Cable: A Type-C USB cable for mains-powered operation.


• Alkaline Batteries: Two "AA" batteries are included for immediate use.


• Storage Bag: A convenient bag for storing the nebulizer and its accessories, suitable for travel.

HOW TO USE

• Preparation: Wash your hands thoroughly and ensure the nebulizer is clean before use.


• Power: Insert two "AA" batteries or connect the device to a power source using the Type-C cable.


• Medication: Open the medication cup, pour in the prescribed liquid medication, and close the lid securely.


• Assembly: Attach the desired accessory, such as the mask or mouthpiece, to the main unit.


• Treatment: Press the power button to start nebulization. Select the desired speed if applicable. Breathe in the mist calmly and deeply until the medication is fully administered and the device shuts off automatically.

CLEANING AND MAINTENANCE

After Each Use (Quick Clean)

• Empty: Discard any remaining medication from the cup.


• Rinse: Add a small amount of distilled water to the medication cup and turn the device on for 1–2 minutes to rinse the mesh.


• Dry: Gently wipe the exterior and allow all parts to air dry.

Automatic Cleaning

• Utilize the one-touch automatic cleaning function as described in the user manual. This typically involves filling the cup with purified water and activating the cleaning cycle to clear the mesh of residue.

Disinfecting

• Periodically disinfect the mask and mouthpiece by washing them with warm, soapy water, rinsing thoroughly, and allowing them to air dry. Refer to the user manual for specific disinfecting solutions if recommended.

TECHNICAL SPECIFICATIONS

• Power Supply: 3V~ (-0.3V, +0.3V) via two "AA" 1.5V alkaline batteries, or via adapter (Input: 100–240V~ 50/60Hz 0.2A, Output: 5V ⎓ 1A).


• Max Nebulization Rate: Approx. 0.3 mL/min


• MMAD: Approx. 3.9 μm


• Residual Volume: Approx. 0.1 mL


• Noise Level: Approx. 45 dB(A)


• Net Weight: Approx. 100 g (excluding batteries)


• Dimensions: 62 mm (L) × 42 mm (W) × 126 mm (H)
